Security Mesh 1-1 Shutters

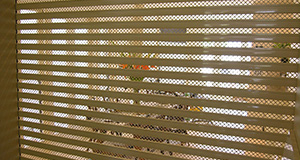

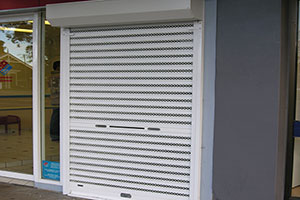

Security Mesh 1-1 is a UNIQUE roller shutter created when our products Rollamesh and Commercial Forceshield are combined.
Rollamesh is made from extruded aluminium which is punched with an X pattern. This allows visibility and air flow. Commercial Forceshield is also an extruded aluminium profile but is solid with no punching of holes. The combination of the two provides an extremely strong roller shutter for commercial applications but with the added bonus of air, light and visibility.
The two products are combined in equal amounts to form Security Mesh 1-1 Alternating the two slats: 1 x Commercial Forceshield, 1 x Rollamesh. In commercial applications, Security Mesh 1-1 allows viewing of window displays and saleable merchandise while providing total security.
Technical Data
- Type: Extruded 6060T5
- Material Guage: 2 x 1.5mm
- Slat Thickness: 10mm
- Combination Slat Thickness: 85mm
- Weight/m2: 7kg/m2
- Standard Colours: White, Cream, Sand, Black & Clear Anodised
- Guide Tracks: Aluminium 66mm x 25mm
- Operation: Hand spring with key locking or Electric motor with auto locking
Security Mesh 1-1 Sizes
| Box Size | Max. Shutter Height | Max. Shutter Width |
| 180mm | 1400mm | 4000mm |
| 205mm | 1800mm | 4000mm |
| 250mm | 2450mm | 4000mm |
| 300mm | 3100mm | 4000mm |
